Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Application: | Candy |
|---|---|---|---|
| Voltage: | 380V | Warranty: | One Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Machine Materials: | Stainless Steel Candy Making Machine Price |
| Model: | HX150-300 | Color: | Silver Candy Making Machine Price |
| Capacity: | 100~150kg/h | Name: | High Efficient Factory Price Jelly Candy Making Machine Price |
| Type: | Automatic | Function: | Multifunctional Candy Making Machine Price |
| High Light: | candy production line,candy making machine |
||
Different Capcaity Sweet Soft Toffee Candy Plant
1. Machine Brief Introduction:

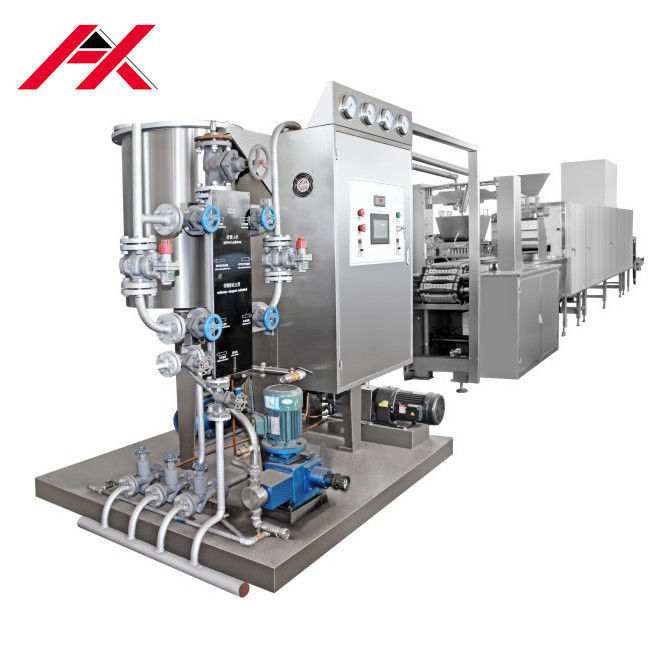

This soft candy processing line is an advanced continuous plant for making different sizes and colors of soft/gummy candies. It is a ideal equipment which can produce out good quality products with one color or two colors and saving of both the manpower and the space occupied. This depositing line consists of dissolving cooker, gear pump, storage strainer, storage tank, discharging pump, color and flavor mixer, depositor, cooling tunnel, electric control cabinet etc.
2. Feature
1) PLC /computer process control available;
2) An LED touch panel for easy operating;
3) The main body is made of Stainless Steel
4) Optional (mass) flowing controlled by Frequency inverters;
5) In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
6) Dosing pumps for the automatic injection of colors, flavors and acids;
7) Use automatic steam control system instead of manual steam valve which controls a stable steam supply to the microfilm cooker.
3. Specifications:
|
Model |
HX150 |
HX300 |
||
|
Production capacity |
150kg/h |
300kg/h |
||
|
Rated Depositing times |
60 (n/min) |
|||
|
Weight ofcandy |
Two color |
1-6g/pc |
||
|
One color |
||||
|
power |
Voltage |
380v |
||
|
power |
18kw |
27kw |
||
|
Compressed air needed |
Dosage |
0.2m3/min |
0.25 m3/min |
|
|
Pressure |
0.4-0.6mpa |
|||
|
Conditions needed for cooling system |
20-25℃ 55% humidity |
|||
|
Dimension |
9400*1100*1800mm |
10000*1600*1800 |
||
|
Gross Weight |
4000kg |
4500kg |
||
Q: How can we get detaied quotation form you?
To save your valuable time, please kindly provide information as follows with your inquiry:
1. The Target Capacity (kg/h) you need;
2. Type of candy picture you want to make;
3. Type of heating device (electric or steam);
4. Your plant length and width if have;
Q:Do you a professional food machienry manufacturer?
Yes, we do. Our team have more than 20 yesrs experience , we are professioanl for the food equipment and export business. And we are know what the customer needs, we can supply
good quality products and competitive price to you.
Q: What methods of Payment are Acceptable?
1) Telegraphic transfer(T/T). If you order is standard machine, just need T/T 30% as deposit before production, then 70% T/T balance before shipment.
2) Western Union
3) L/C: 100% L/C Irrevocable at sight
Contact Person: Eileen1
